Description for DSGatewayLib's example sketch

Install DSGatewayLib

Unzip the downloaded archive file and copy the unzipped files and folders to Arduino IDE's libraries folder.

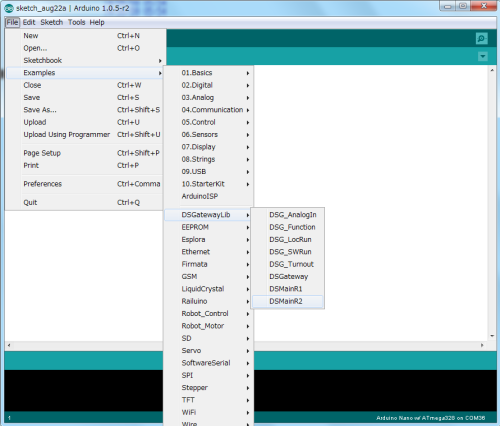

Example sketches

DSGateway

This sketch is default use for Arduino Uno and DCC/MM2 shield.

DSGateway_AIN

DSGateway_AnalogIn

DSGateway_LCD

DSG_AnalogIn

Analog input signal converts to Locomotive speed.

DSG_Function

Locomotive's function example.

DSG_LocRun

Locomotive example.

DSG_SWRun

DSG_Turnout

Turnout example.

DSMainR1

This example sketch uses for DSmain R1. DSmain R1 has already discontinued.

DSMainR2

This example sketch uses for DSmain R2.

DSServer

This example uses Ethernet shield.
