play_station_joystick

Replace S88 I/F to Playstation joystick

DSmainR4 supports to connect Playstation joystick instead of S88 decoders. This page describes how to make the conversion board.


About this

DSmainR4 is using PSXLibrary. Please download and copy it to Arduino IDE's libraries folder.

Supporting joystick

  • Taito's Densha-de-go One handle master controller

Wire assignment

Playstaion S88 S88-N(Ether) Arduino Notes
1.DATA 3.CLOCK 4.CLOCK D3
2.COMMAND 4.LOAD 6.LOAD D4
3.N/C (9 Volts unused) N/C N/C N/C
4.GND 2.GND 3.GND,
5.GND
GND
5.VCC 6.+5V 1.+5V 5V Supported 3 to 5V
6.ATT 1.DATA 2.DATA A0
7.CLOCK 5.RESET 7.RESET D5
8.N/C N/C N/C N/C
9.ACK N/C N/C N/C

If you want to use a standard Ethernet cable, please see this page for Ethernet cable pin specification.

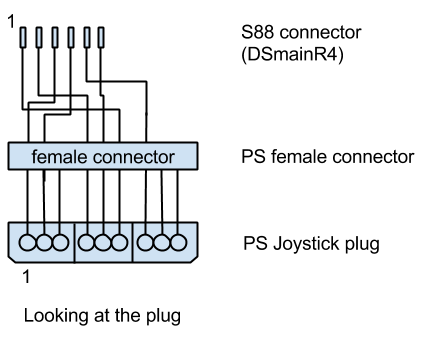

Wiring diagram

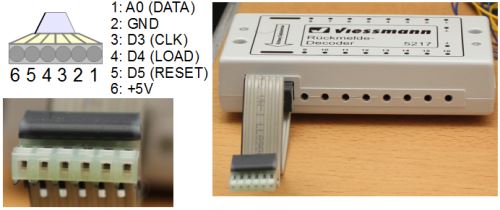

S88 pin assignment


Soldering instruction

  1. Get PS-USB conversion device like ELECOM's JC-PS101U.
  2. Get a cheap Ethernet cable.
  3. Unsolder internal PCB and PS female connector.
  4. Cut Ethernet cable
  5. Solder the wire of Ethernet cable and PS female connector.
  6. Finish!

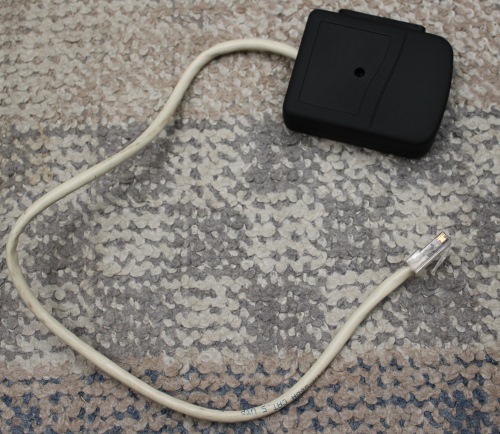

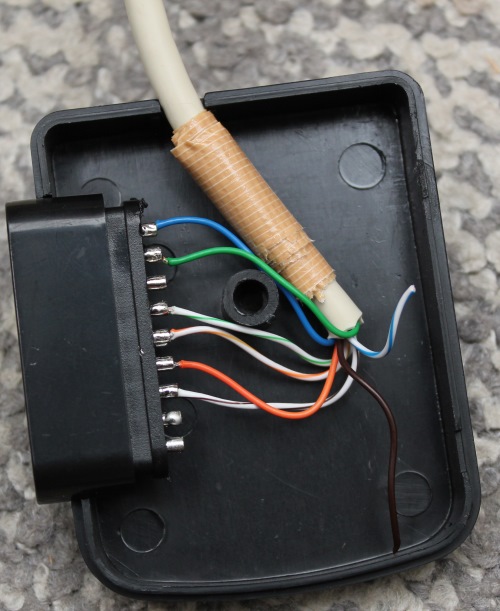

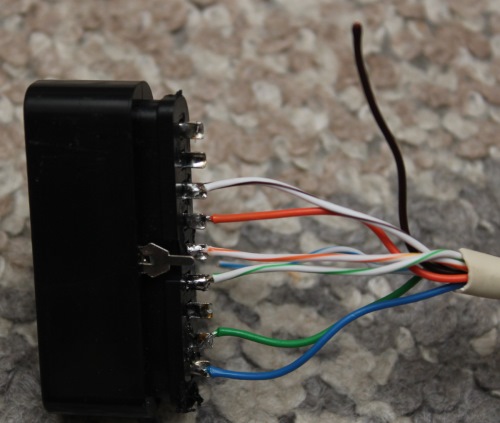

Example soldering and assembling

If you are using Cat.5e Ethernet cable, See T568B wiring specification. If Cat.5, See T568A wiring specification.

The following assembling example is using Cat.5e cable.
